6
Only possible with a 45° drainage slope.
Board waste can then only be reused in combination with the inner or the outer corner.

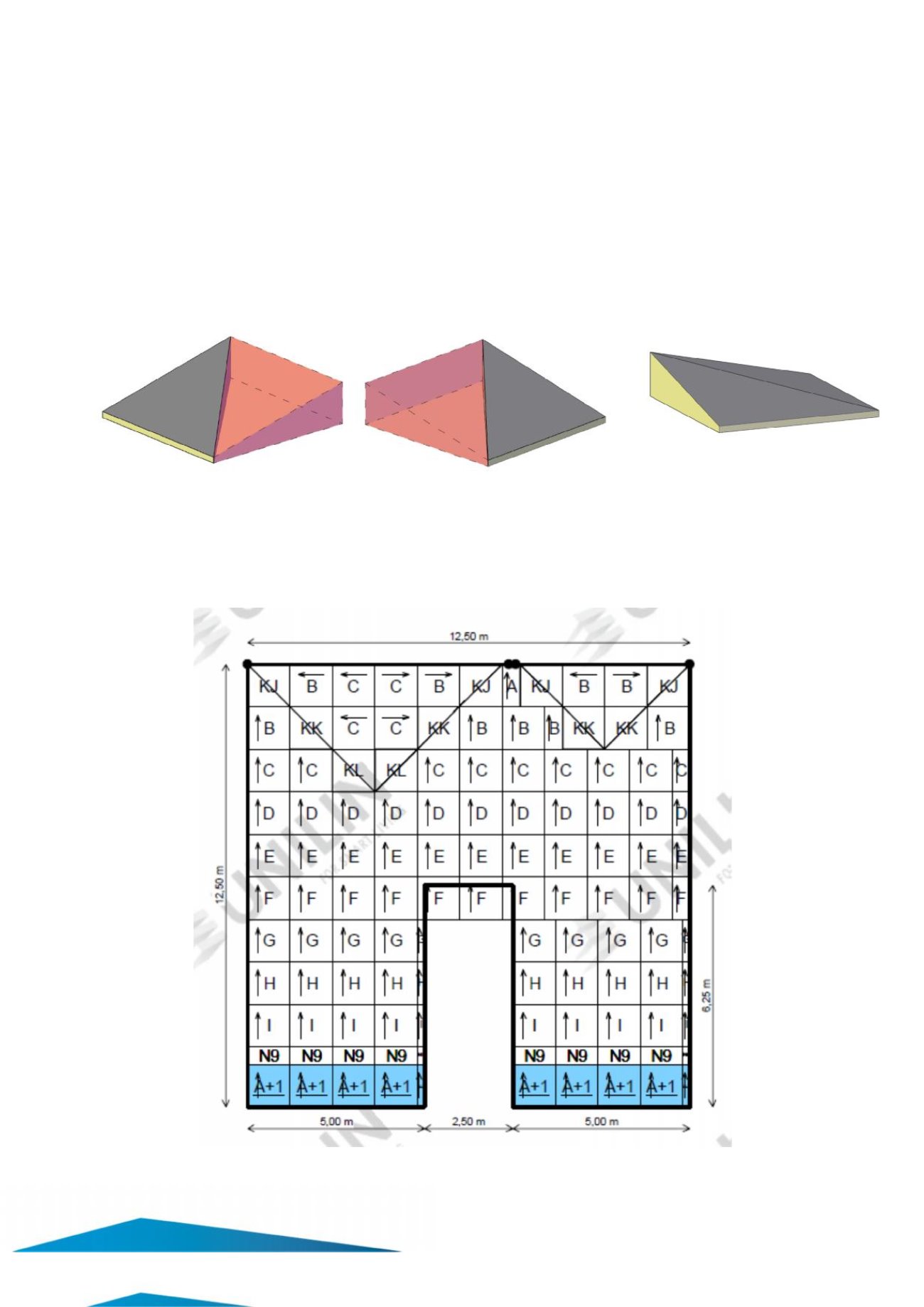

The insulation boards in the form of a V-gutter are indicated on the installation plan by a sequential letter, which is preceded by a 'K'.
 Ridge cap
The insulation boards in the form of a ridge are indicated on the installation plan by a sequential letter, which is preceded by a 'G'.
 Example of the planned slope of a flat roof
GX
